20Mpa High Pressure Polyurethane Foam Machine 9kw Heater

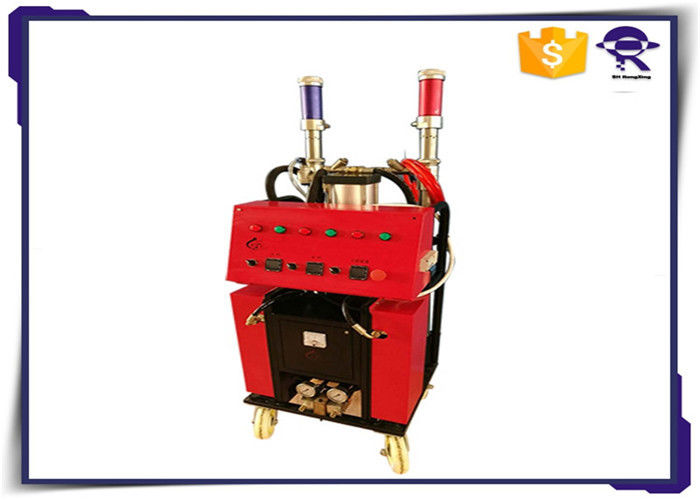

Large Image : 20Mpa High Pressure Polyurethane Foam Machine 9kw Heater

Product Details:

Place of Origin:	Shanghai
Brand Name:	RongXing
Certification:	CE
Model Number:	FD-11

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	carton box,10009001500mm
Delivery Time:	5-10 working days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, paypal,credit card
Supply Ability:	100 set/month

Contact Now

20Mpa High Pressure Polyurethane Foam Machine 9kw Heater

Description

Product Name:	High Pressure Polyurethane Foam Machine	Use:	Exterior Wall Insulation
Spec:	380V/50HZ/3-Phase Or 220V/50HZ/1-Phase	Use Place:	Waterproof Construction, Polyurethane Roofing, Walling Heat-insulated Construction
Gross Weight:	About 260KG	Packing Size:	9009001400mm
Color:	Red
High Light:	20Mpa High Pressure Polyurethane Foam Machine , Polyurethane Foam Machine 9kw Heater , 9kw Heater polyurethane injection equipment

Red color polyurethane spray machine in 380V or 220V for spray polyurethane

Spec:

Max operation pressure (Mpa)	20Mpa
Max output flow	6-8kg/min
Power of heater	9kw
Length of standard heat-insulated material tube	30Meter
Standard raw material mix proportioning (A:B)	1:1
Operation air pressure	0.6-0.8Mpa
Power supply for equipment	380V/220V
Air supply for equipment (air compressor)	1Mpa
Air discharge	≥1.2M3/minute
Gross weight	250KG
Packing size	10009001500mm

Describe:

1. The equipment has obtained CE certification, safe and environmental protection.

2. Having the proprietary property rights in design and production, several national patents have been applied and approved.

3. The perfect coaxial structure design of the horizontal booster pump reduces greatly the abrasion of the sealing. There is no pressure difference during operation and the commuting pressure fluctuation value is ideal and stable.

4. The lubricant inside the anti-solidifying lubricating cylinder circulates with high speed so that the leaked material and impurities could be brought away rapidly. The shaft for black material is always kept in the lubricant avoiding the crystallization.

5. The delicate coupling structure is easy for the dismounting of the booster pump during the maintenance. When necessary, the complete unilateral raw material pump can be replaced to change the proportion of the raw material.

6. The pneumatic commuting control assembly is simple in structure and reliable in operation, and enables the pump body operating normally during the lack of electricity.

7. The design and application of the reset function when shut down realizes the dual protection.

8. The dual filters of the equipment for both high and low pressure and the filter of the nozzle realize the triple filtration protection for the raw material and reduce the blocking.

9. The special armoured temperature sensor inside the heater can collect the temperature signal at any time, hence the overshooting value for heating is well controlled.

Use area:

Building exterior wall, cold storage, automobile, chemical storage tank, workshop workshop, grain depot, farm shed and so on.

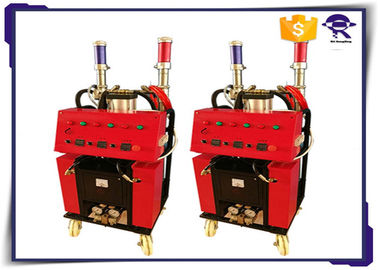

Picture:

20Mpa High Pressure Polyurethane Foam Machine 9kw Heater 0
